Calibrating AR Hanafuda

Nintendo Museum’s AR Hanafuda game requires projection calibration to align virtual imagery with the cards. However, the busy graphics and background make calibration difficult. Two solutions:

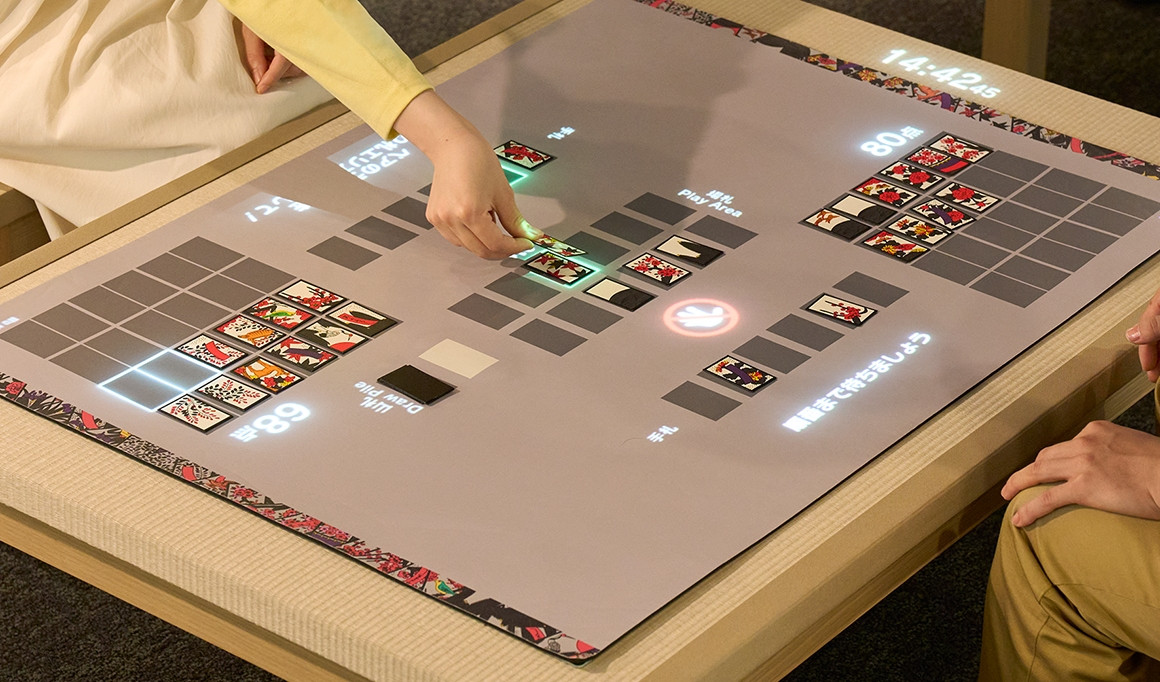

Official photo of the Nintendo Museum Hanafuda game, showing AR projection over a physical game board
  1. Comparing the game board image taken by an overhead camera to the reference game board image

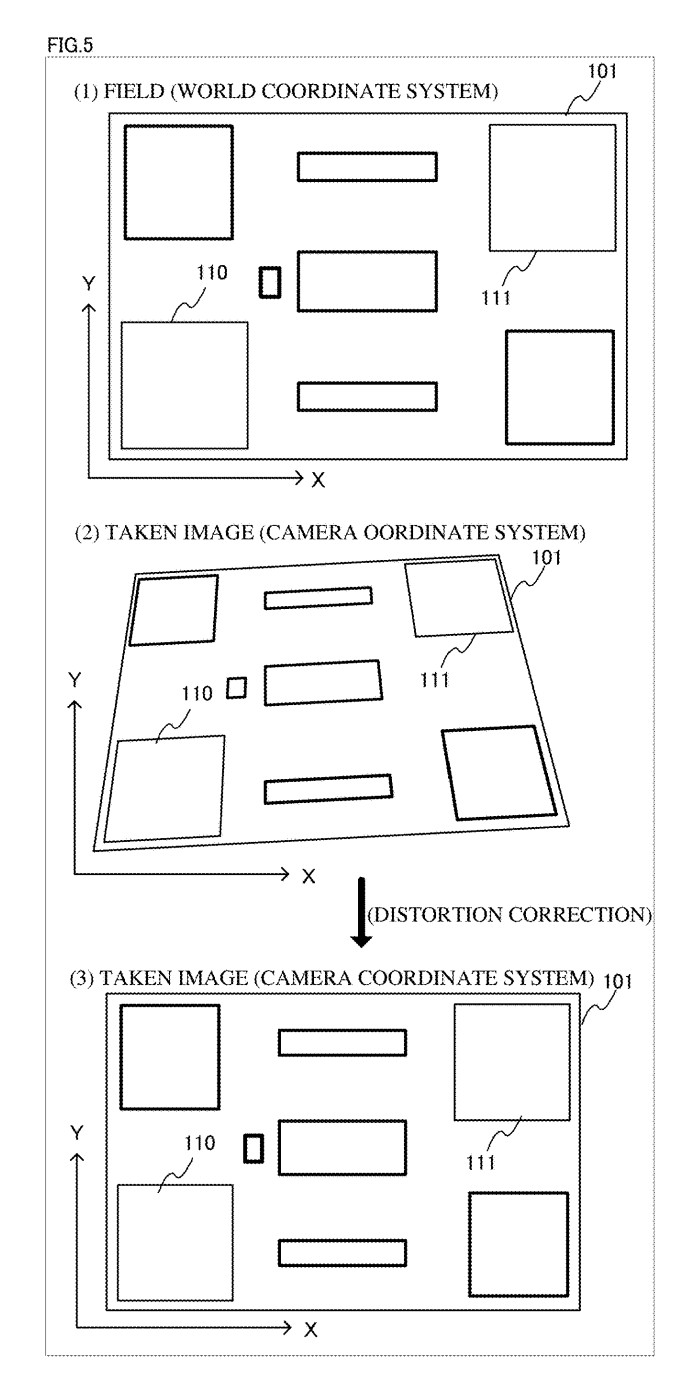

Drawing from patent US20250317538: FIG. 5 illustrates a process of correcting a distortion of a taken image by associating a field coordinate system with a camera coordinate system
  1. Projecting procedurally generated polygons to the game board, and comparing their coordinates to the camera-captured polygons’ coordinates

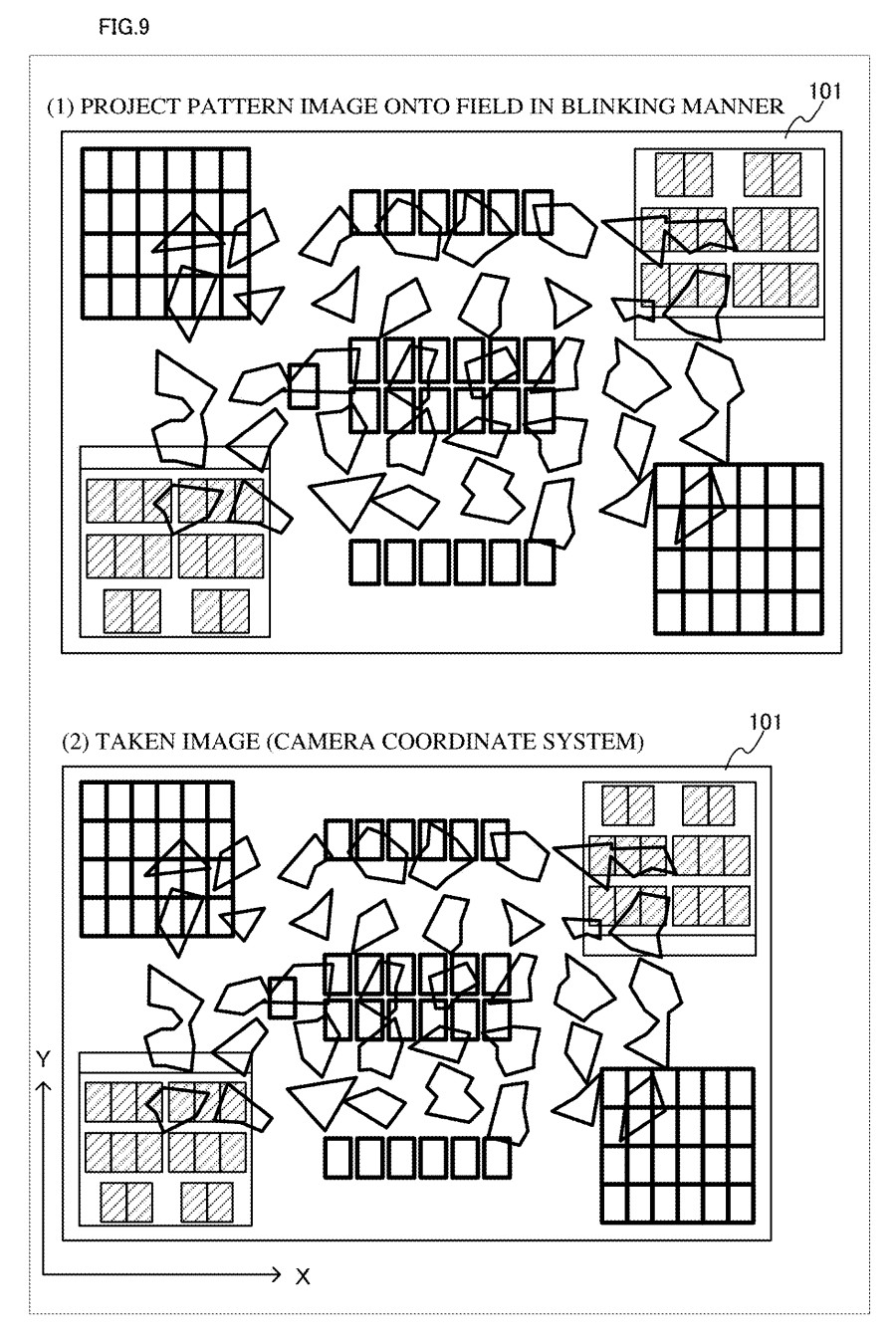

Drawing from patent US20250317538: FIG. 9 illustrates a process of associating a projector coordinate system with the camera coordinate system

Previous patents for Nintendo Museum: Zapper & Scope SP, and Love Tester SP
