Alarmo Patent: Motion-based Sound Control

An Alarmo patent regarding its motion-based sound control has been published in the EU on 2026-01-21.

  1. An mmWave sensor (#21 in img 1) detects distance, direction and speed of motions around the bed (img 2)
  2. By calculating the amount of motions accumulated during a given time, a different sound is triggered and its volume modified (imgs 3-4)
  3. The aims are to encourage user to get up, prevent them from going back to sleep, and reward fully waking up

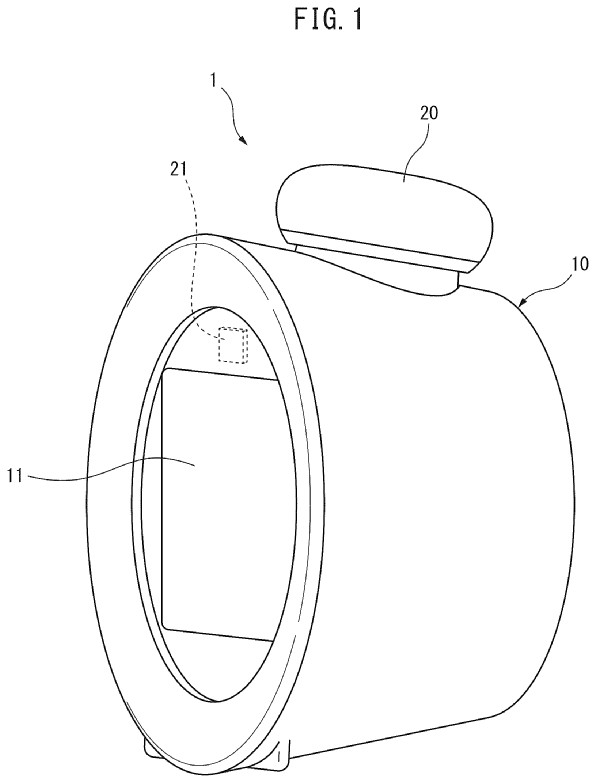

Drawing from patent EP4682849: FIG. 1 is a perspective view schematically showing a sound playback device.

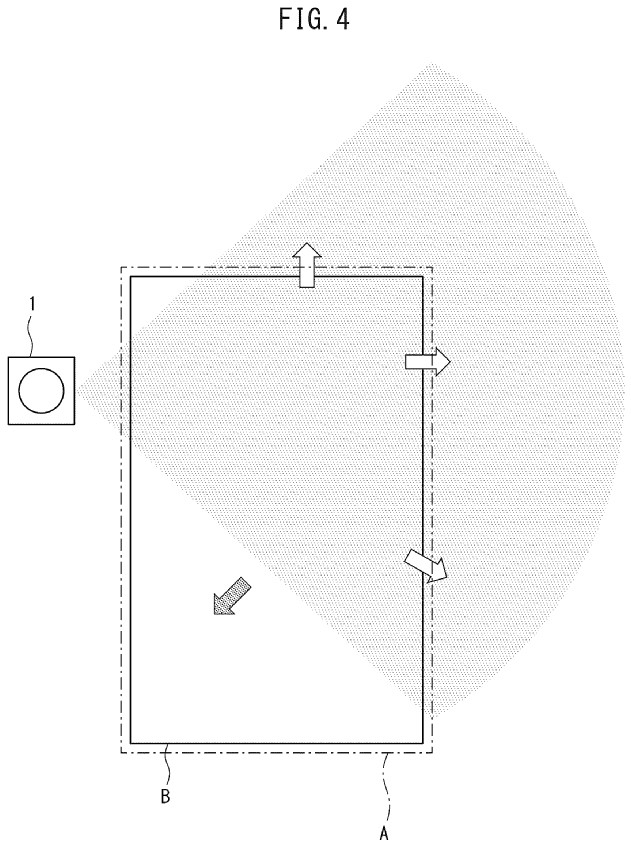

Drawing from patent EP 4682849: FIG. 4 is a view schematically showing a detection range of a non-contact sensor when a sound playback device is placed next to a bed on which a user sleeps.

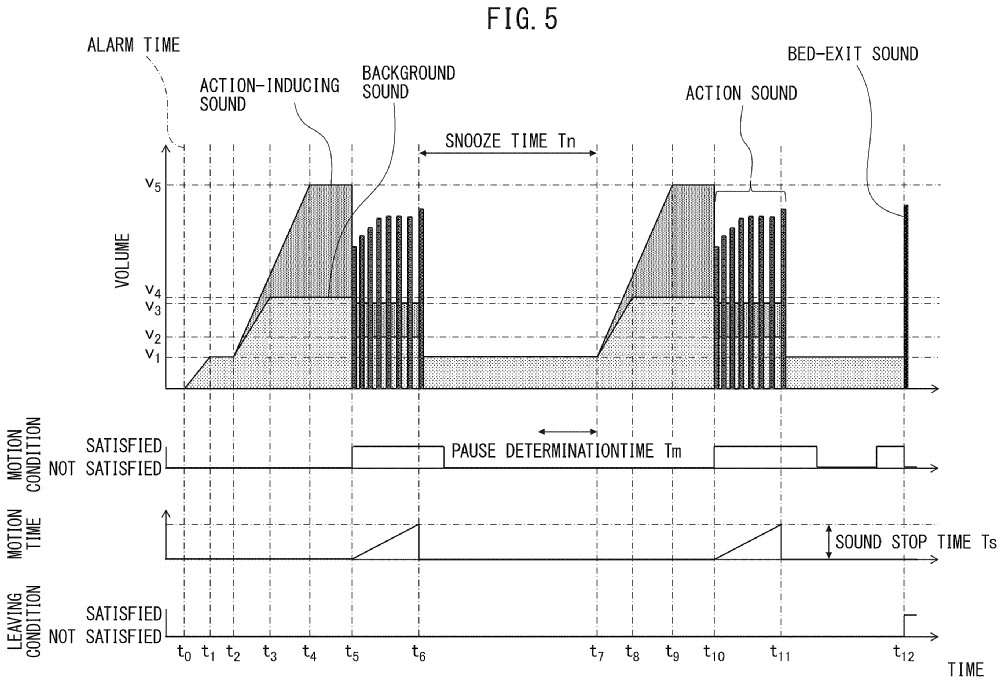

Drawing from patent EP4682849: FIG. 5 is a time chart showing the overall volume of sounds played by the sound playback device or the like.

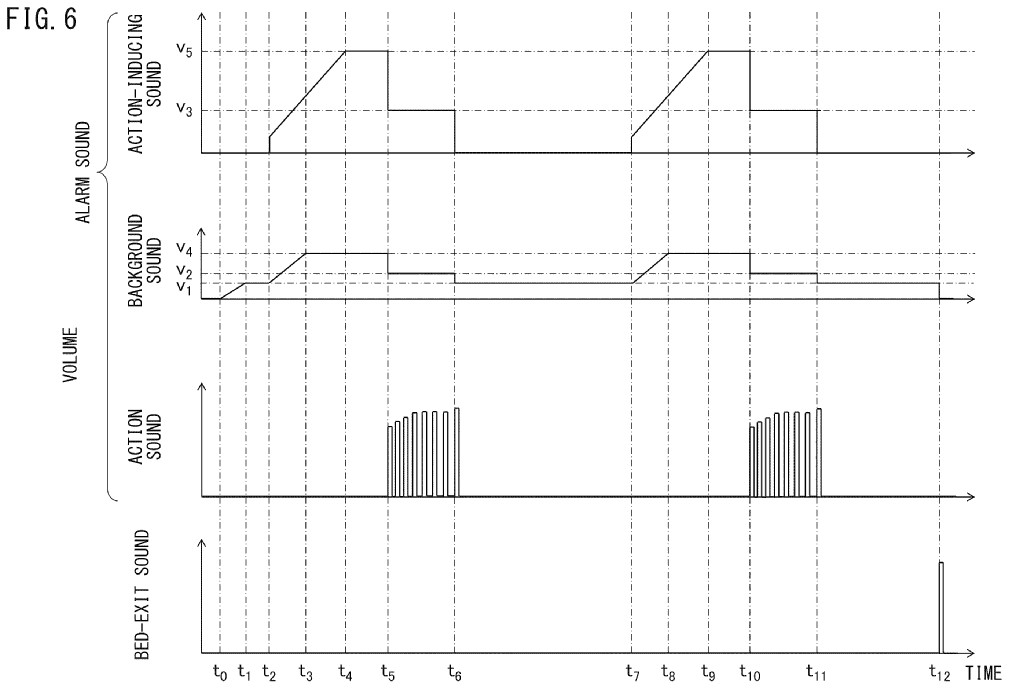

Drawing from patent EP 4682849: FIG. 6 is a time chart showing the volume of each sound of FIG. 5.

[Originally posted on 2026-02-02 Pacific Time]
