Thermal Management of Switch 2 LCD Panel

Patent application EP4764680 describes the Switch 2 LCD panel’s thermal management via its component and wiring configuration (imgs 1-4 below). The barely interesting part is that in order to control cost, the graphite sheet only covers the heat-generating backlight and driver components instead of the full backplate.

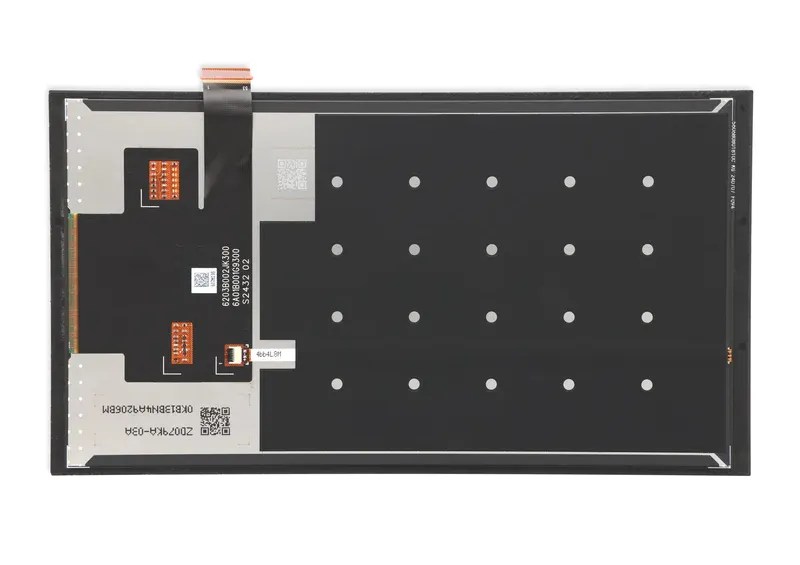

Photo of Switch 2 LCD panel, backside Source: https://www.ifixit.com/products/nintendo-switch-2-console-screen

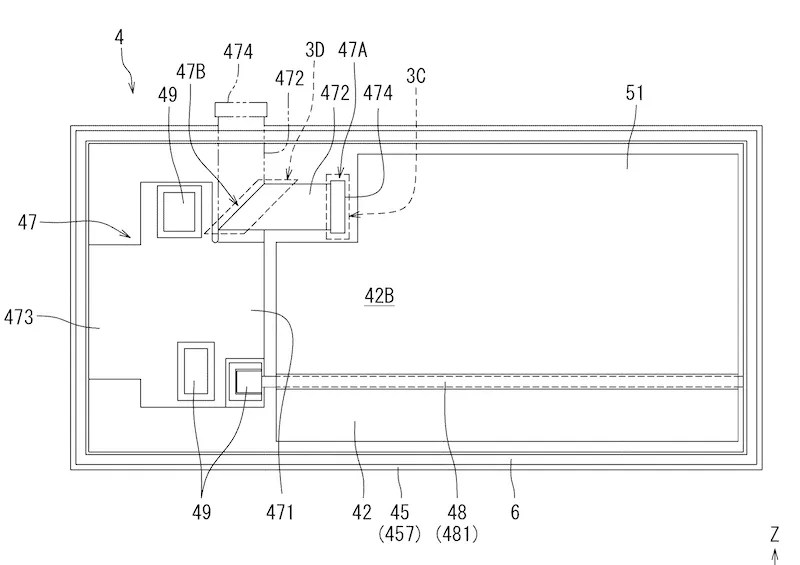

Drawing from patent EP 4764680: Fig. 4 is a schematic bottom view of the display, the thermal conductor, and the double-sided tape piece when viewed from a position facing a housing.

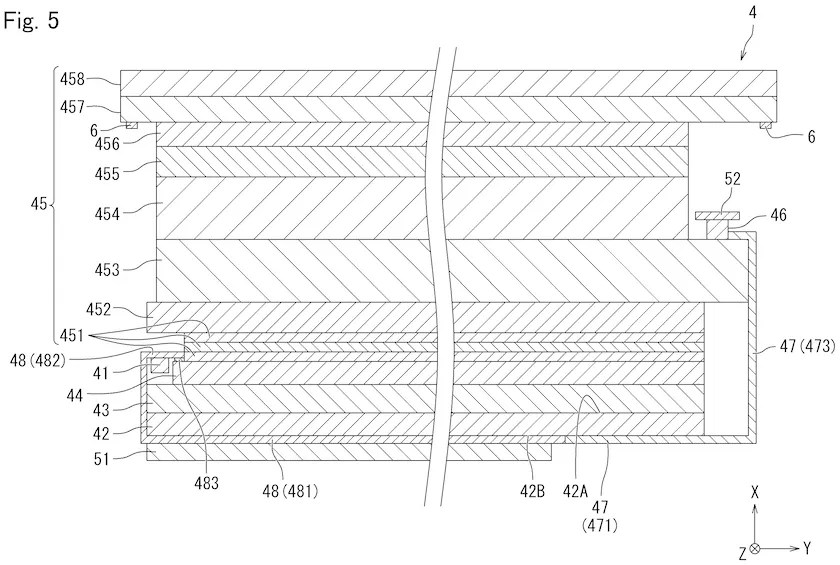

Drawing from patent EP 4764680: Fig. 5 is a cross-sectional view. The display 4 includes a light source 41, a backplate 42, a reflective plate 43, a light guide plate 44, a liquid crystal panel 45, a driver component 46, the first wiring board 47, the second wiring board 48, and electronic components 49.

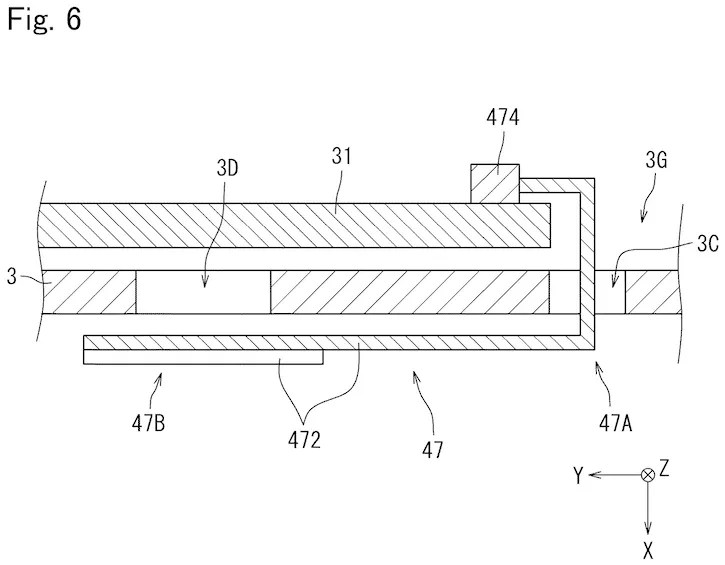

Drawing from patent EP 4764680: Fig. 6 is a schematic cross-sectional view of the housing, a substrate, and a first wiring board taken along an XY cross section at a first opening and a second opening.

I didn’t plan to write about this unremarkable patent until I saw Mike Odyssey’s remarkable BS linking it to the development of Switch 2 Lite (img below). 🫩

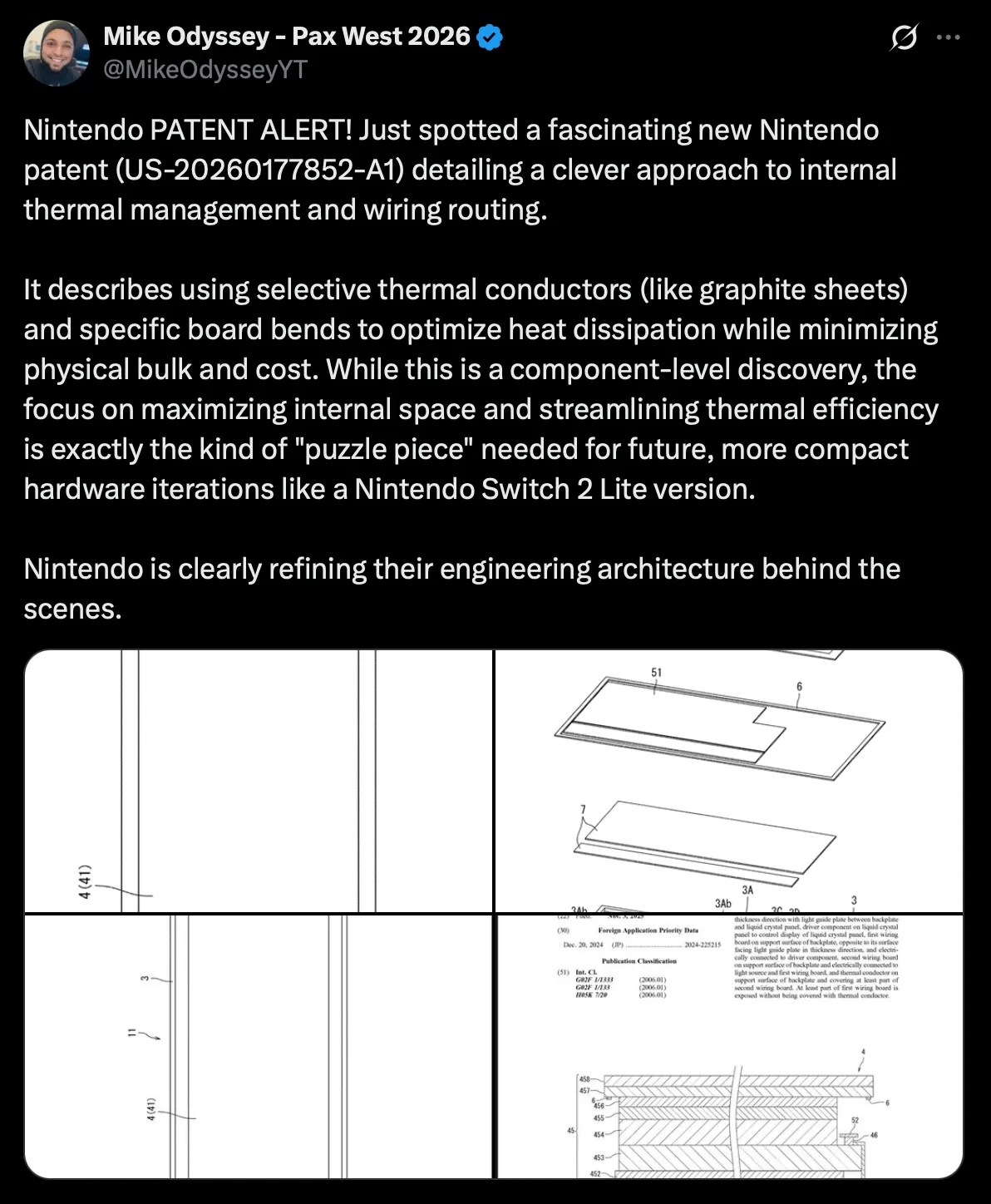

X post by Mike Odyssey: Nintendo PATENT ALERT! Just spotted a fascinating new Nintendo patent (US-20260177852-A1) detailing a clever approach to internal thermal management and wiring routing. It describes using selective thermal conductors (like graphite sheets) and specific board bends to optimize heat dissipation while minimizing physical bulk and cost. While this is a component-level discovery, the focus on maximizing internal space and streamlining thermal efficiency is exactly the kind of "puzzle piece" needed for future, more compact hardware iterations like a Nintendo Switch 2 Lite version. Nintendo is clearly refining their engineering architecture behind the scenes.

[Originally posted on 2026-06-28 Pacific Time]
