Two Cursor Modes in Tomodachi Life: Living the Dream

Depending on the zoom level in Tomodachi Life: Living the Dream, the cursor operates differently (img 1 below). Patent application US 19536850 details the gazing point behavior, object types treatment, and mode-switching continuity (imgs 2-4).

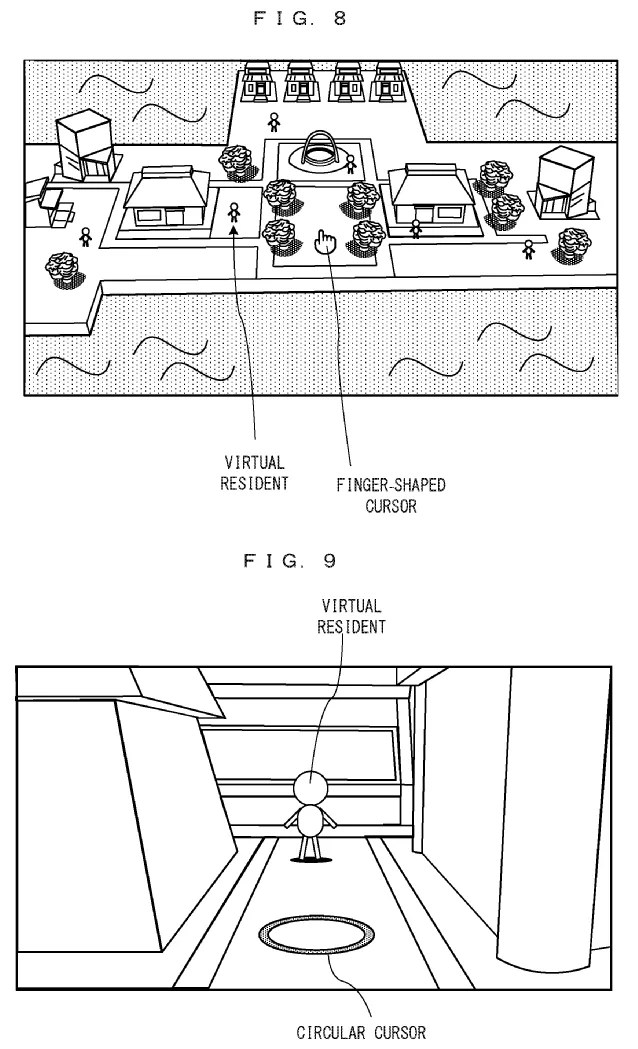

Drawings from patent publication US 20260263929: FIG. 8 shows a non-limiting example of a game screen according to an exemplary embodiment FIG. 9 shows a non-limiting example of the game screen according to the exemplary embodiment

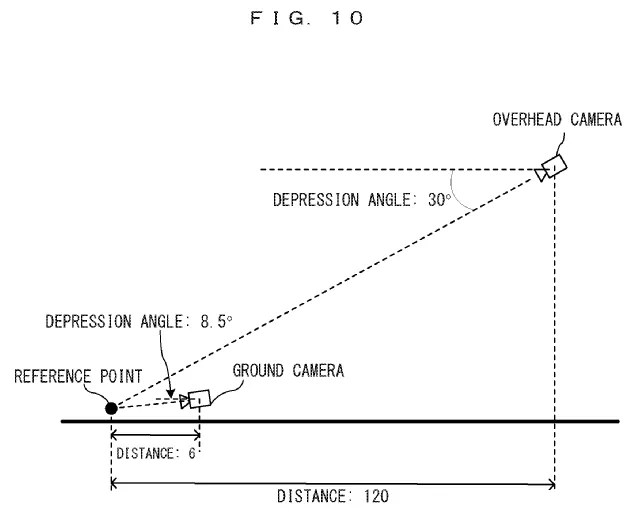

Drawing from patent publication US 20260263929: FIG. 10 illustrates a non-limiting example of a camera mode

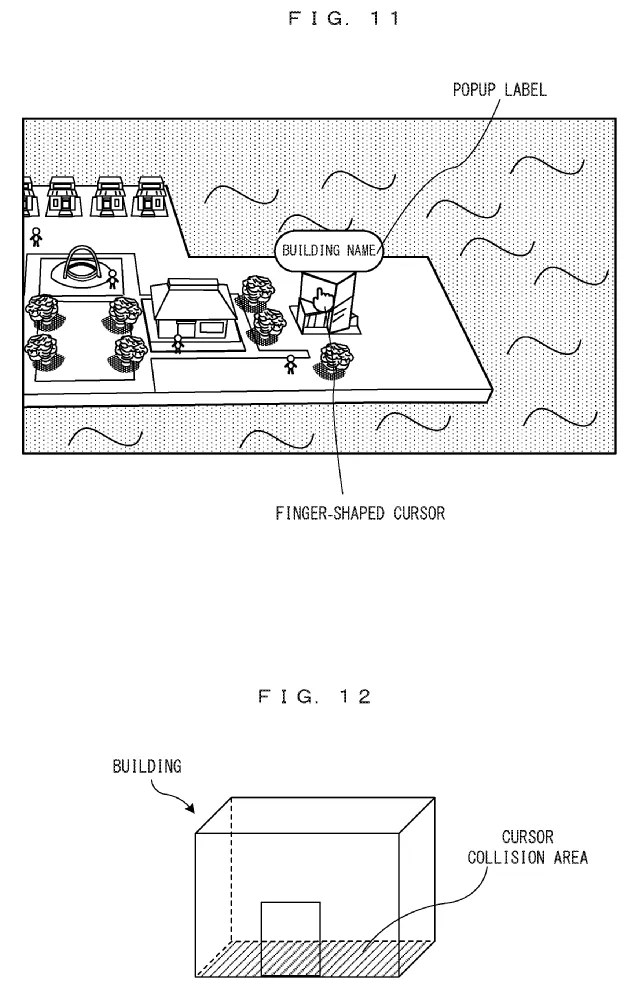

Drawings from patent publication US 20260263929: FIG. 11 shows a non-limiting example of the game screen according to the exemplary embodiment FIG. 12 shows a non-limiting example of a cursor collision area

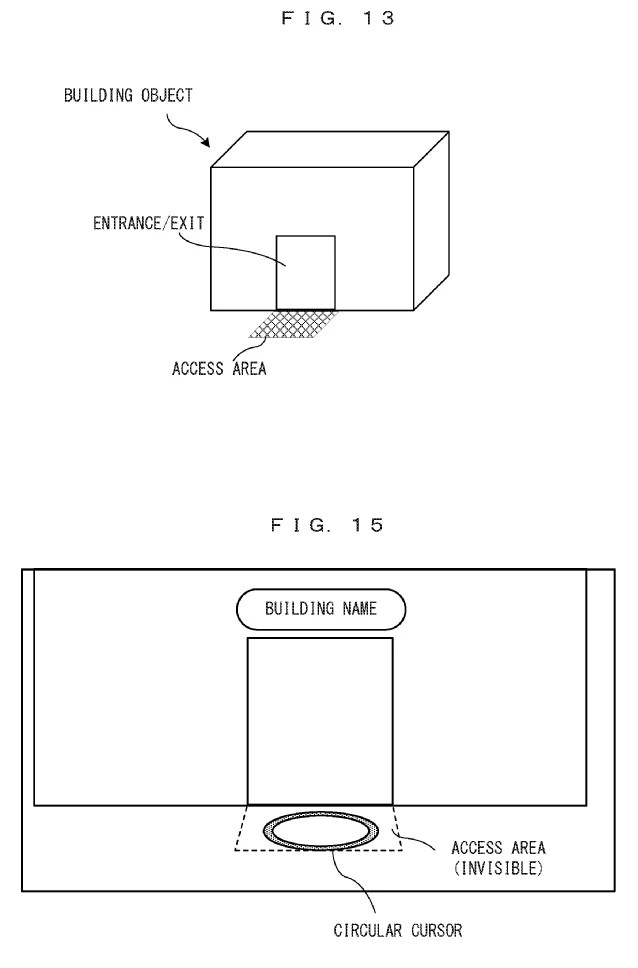

Drawings from patent publication US 20260263929: FIG. 13 shows a non-limiting example of an access area FIG. 15 illustrates a non-limiting example of the building access in the case of the ground camera

One interesting detail is that the cursor collision works by detecting the pixels expanding out of an object (img 1 below), and the pixels are embedded with extra info such as the building name (img 2).

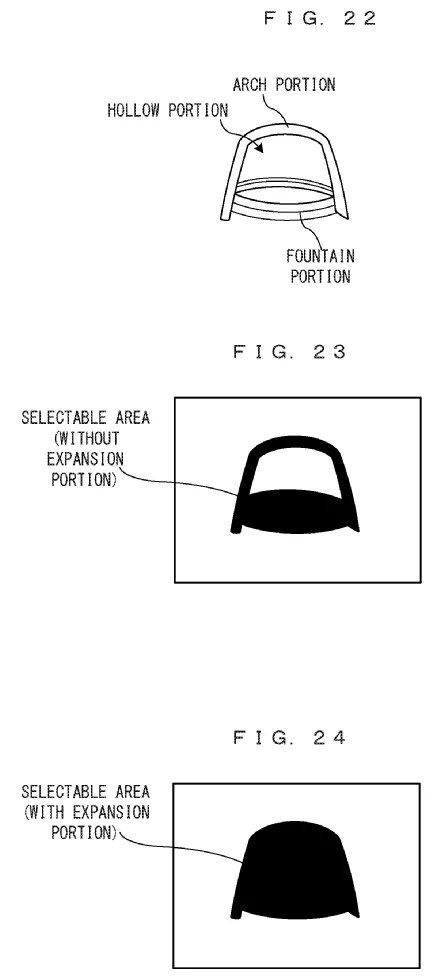

Drawings from patent publication US 20260263929: FIG. 22 illustrates a non-limiting example of the processing of a pick function; FIG. 23 illustrates a non-limiting example of the processing of the pick function; FIG. 24 illustrates a non-limiting example of the processing of the pick function

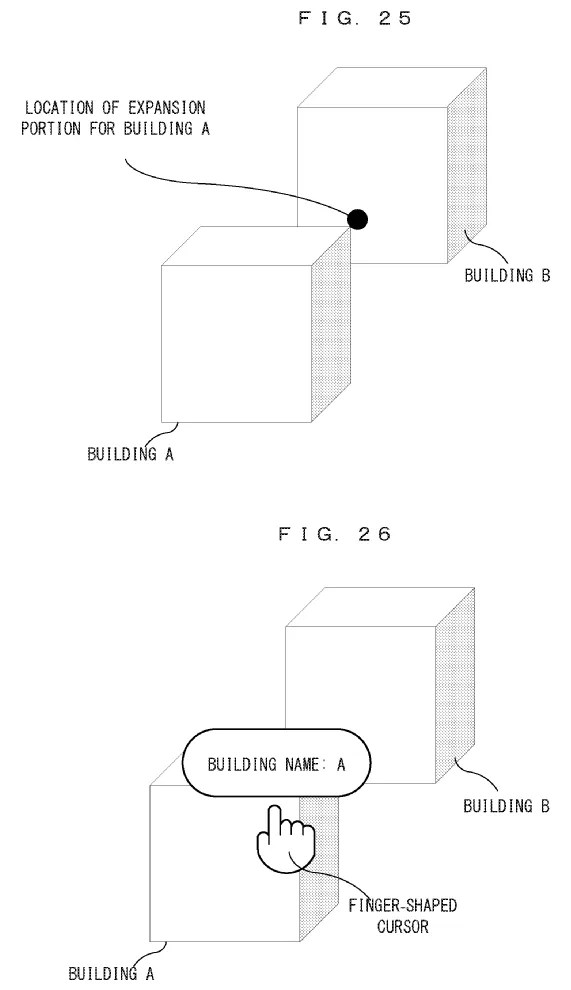

Drawings from patent publication US 20260263929: FIG. 25 illustrates a non-limiting example of the processing of the pick function; FIG. 26 illustrates a non-limiting example of the processing of the pick function

Related: Tomodachi Life’s relationship UI

[Originally posted on 2026-09-29 Pacific Time]
