How Zelda Notes Works in the Backend

Four patent applications for Zelda Notes are published in the US. They cover the interactions between the Switch game, online server, and mobile app (img 1), including the data generation and transmission to facilitate the navigation (img 2), Autobuild sharing (img 3), and item sharing (img 4) features.

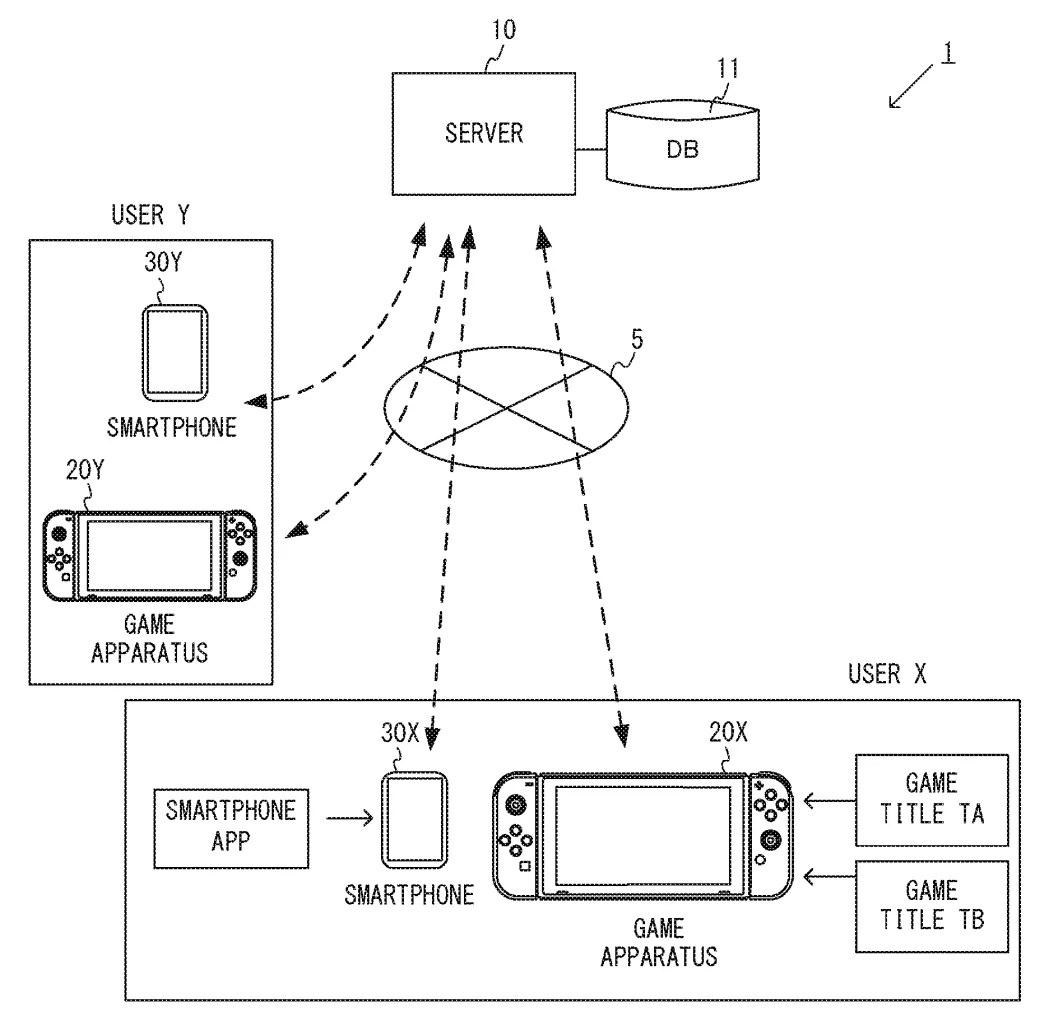

Drawing from patent publication US 20260295435: FIG. 1 is an example non-limiting diagram showing an example of a game system 1 according to an exemplary embodiment

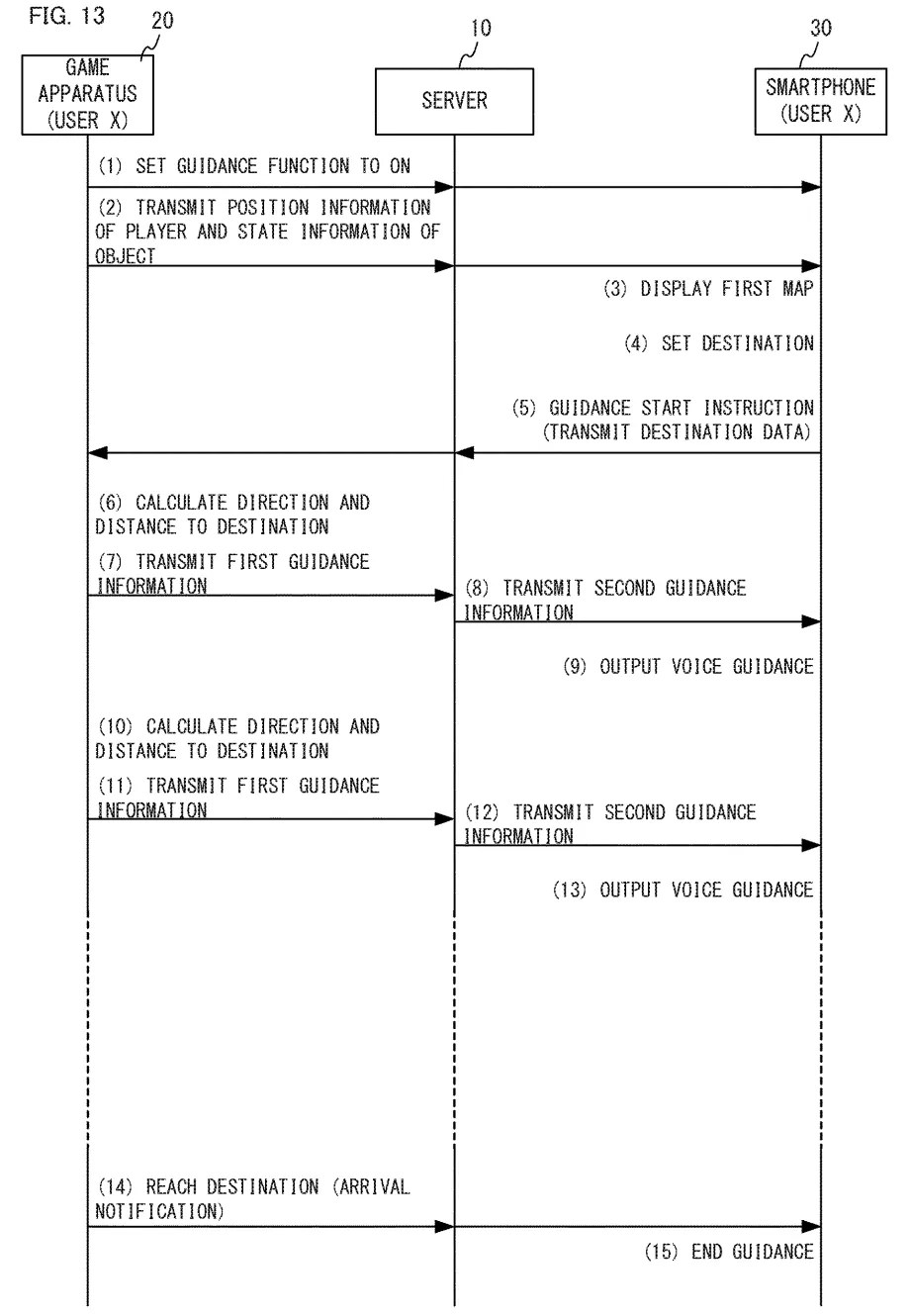

Drawing from patent publication US 20260295415: FIG. 13 shows a flow of operations of the game apparatus 20, a server 10, and the smartphone 30 when guidance to the first game object 41 is performed

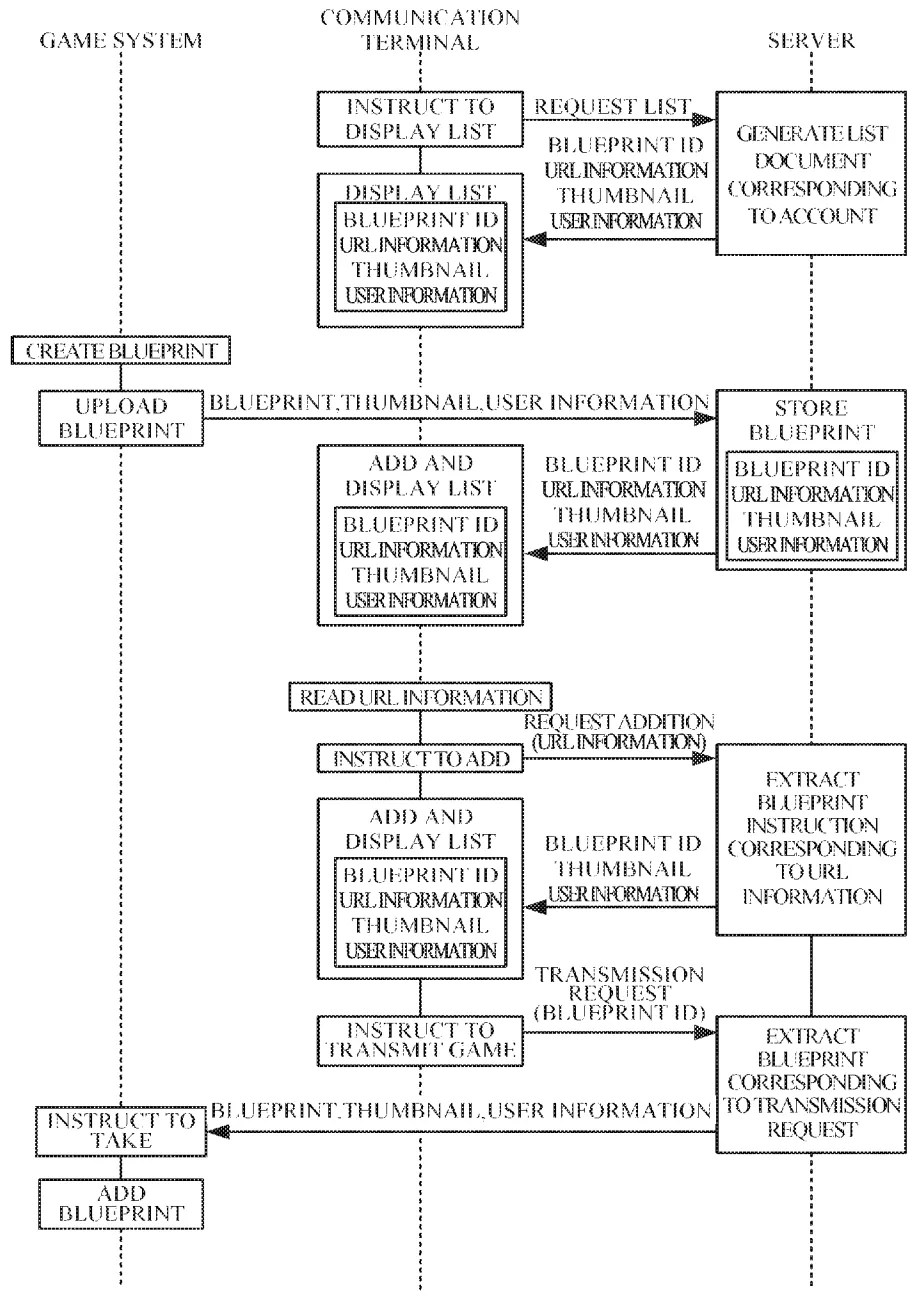

Drawing from patent publication US 20260295425: FIG. 17 is a sequential diagram showing a non-limiting example of a communication process operation between a game system 1, a communication terminal 150, and a server 200

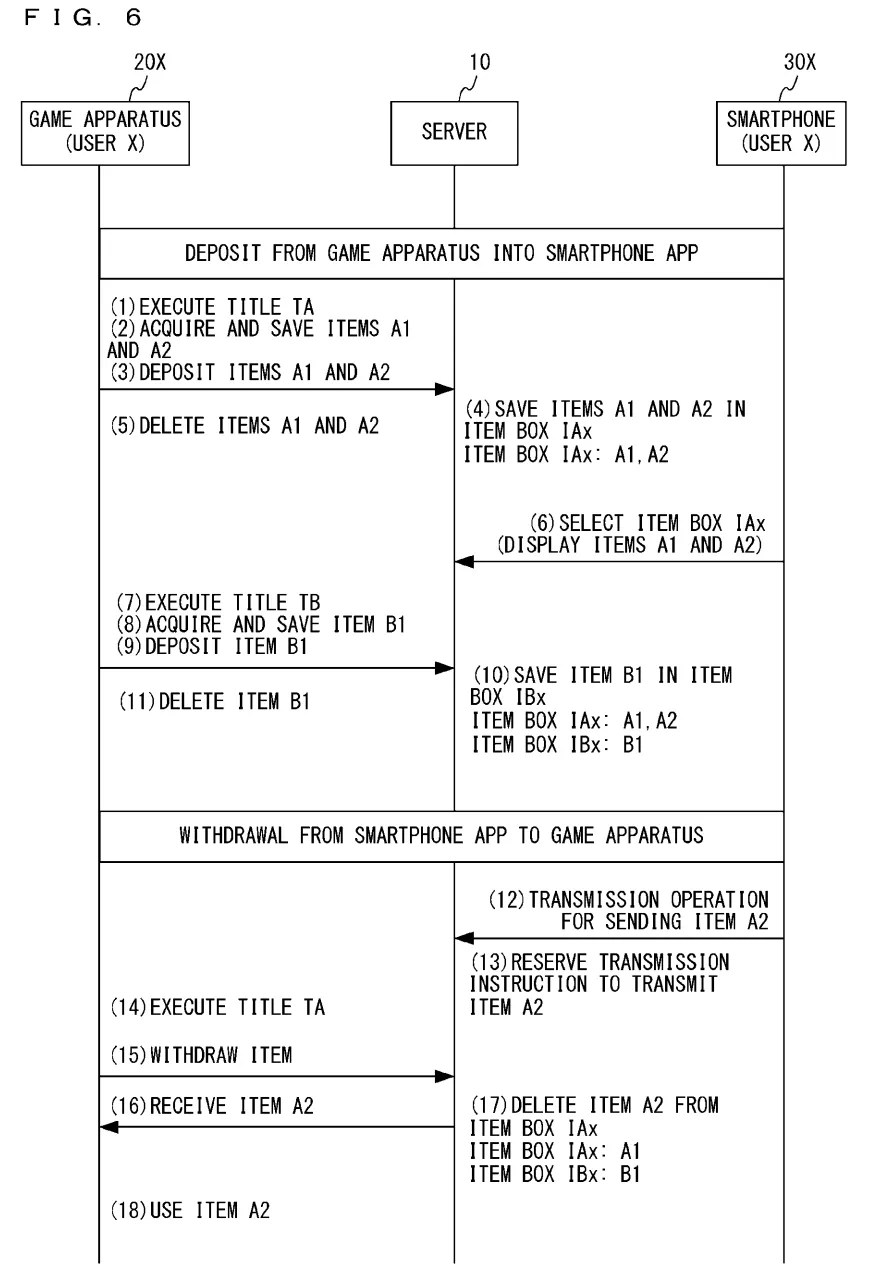

Drawing from patent publication US 20260295414: FIG. 6 is an example non-limiting diagram showing the flow of the deposit and the withdrawal of an item

US patent publications: 20260295415, 20260295425, 20260295414, 20260295435

[Originally posted on 2026-10-04 Pacific Time]
