How Joy-Con 2 Analog Stick Suppresses Dirt Entry

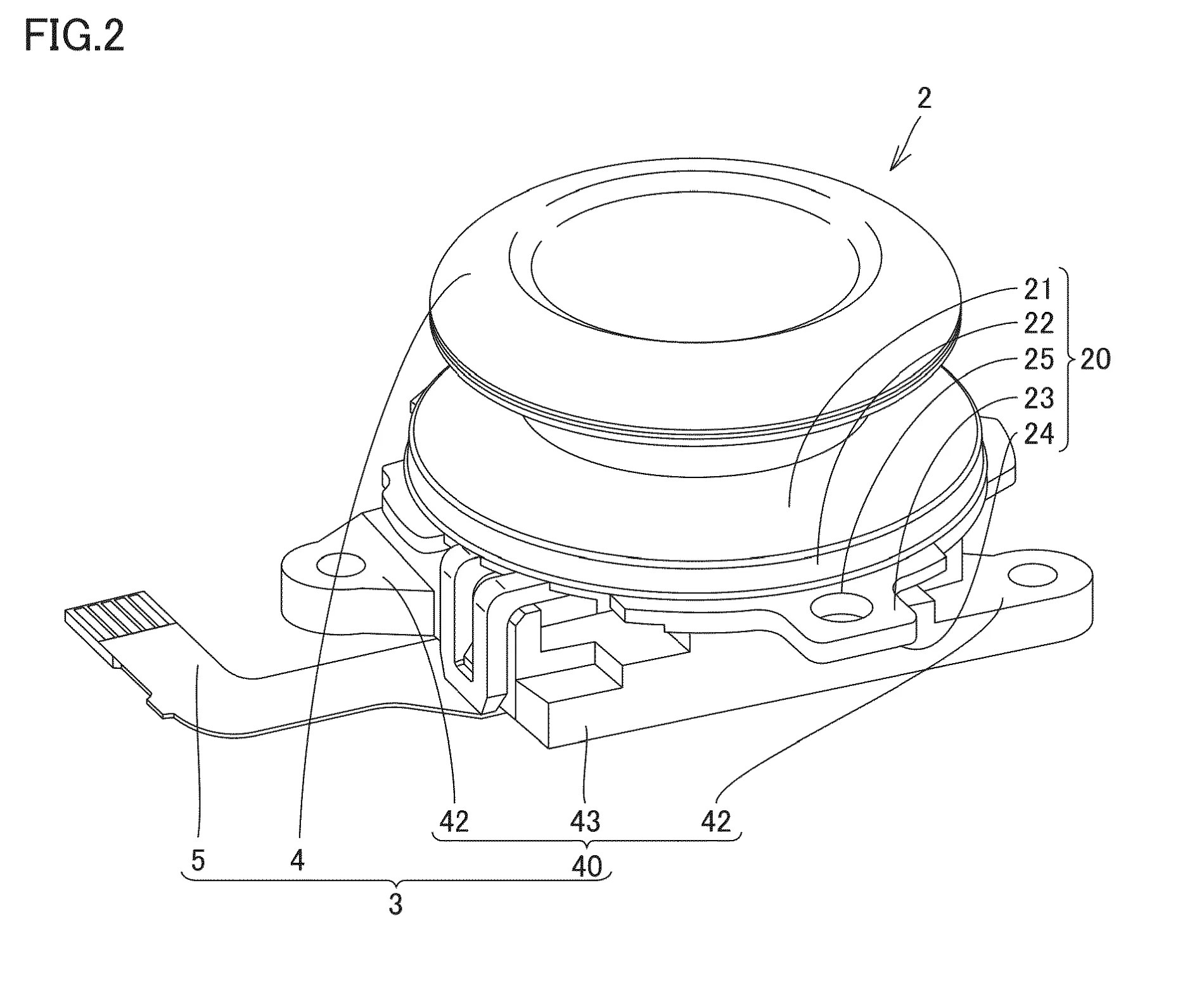

Drawing from patent EP4741986: Fig. 2 shows an exemplary illustrative non-limiting drawing of a schematic perspective view showing a configuration of a stick device.

A new patent application EP4741986 for the Joy-Con 2 analog stick:

To give the stick a sufficient range to tilt while keeping the Joy-Con’s overall profile low, the stick module is mounted close to the Joy-Con surface and the hole on the top shell needs to be large enough (W1 in image 1 below).

But a large hole can collect debris and looks bad. To “suppress exposure”, a deformable “umbrella” (#13 in img 2) is attached right below the stick cap (#11), and a ring-shaped “cover” (img 3) is affixed to the stick module via #26 + #44 (img 4) and to Joy-Con shell via #25 + #105 (img 1).

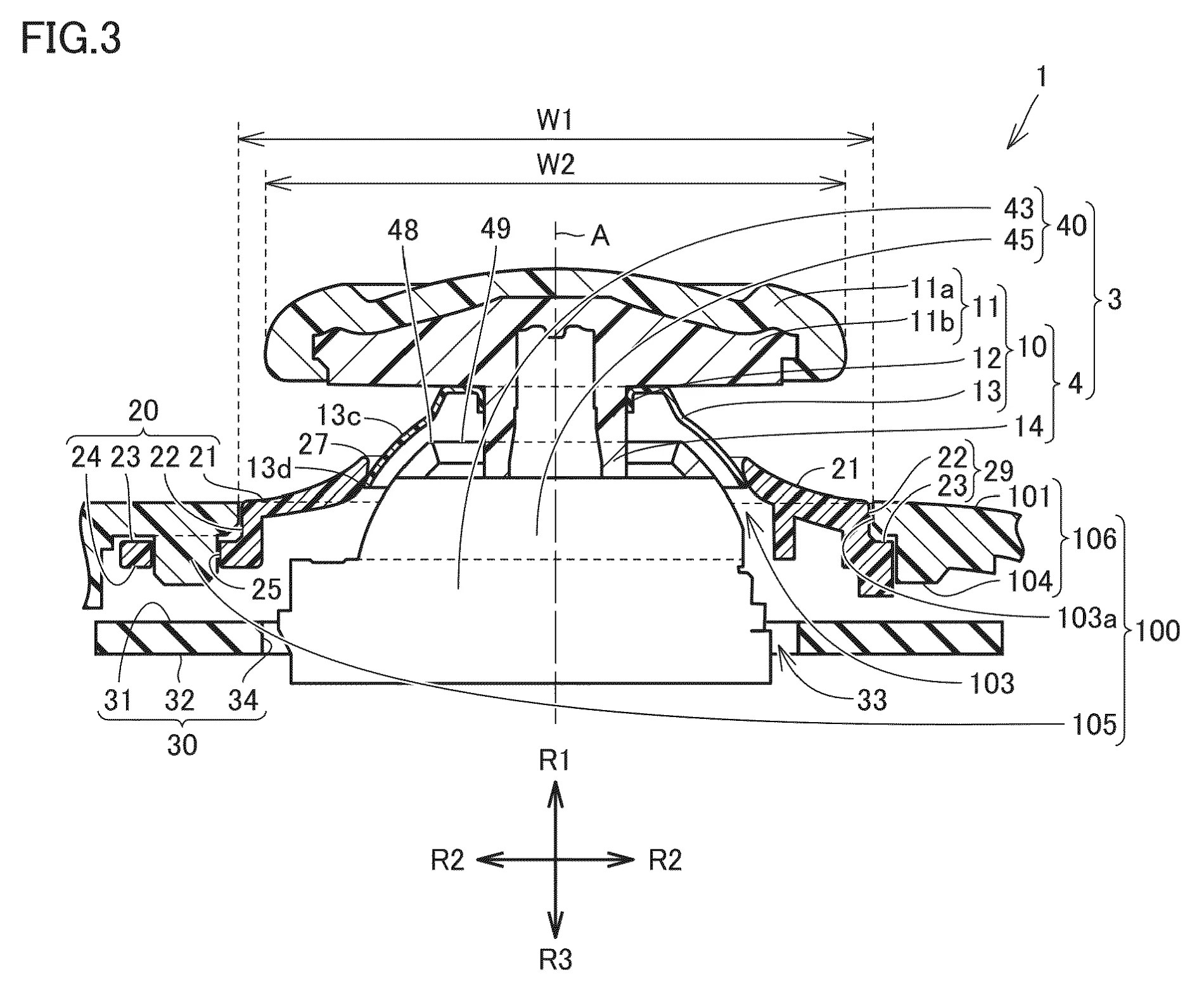

Drawing from patent EP 4741986: Fig. 3 shows an exemplary illustrative non-limiting drawing of a partial schematic cross-sectional view.

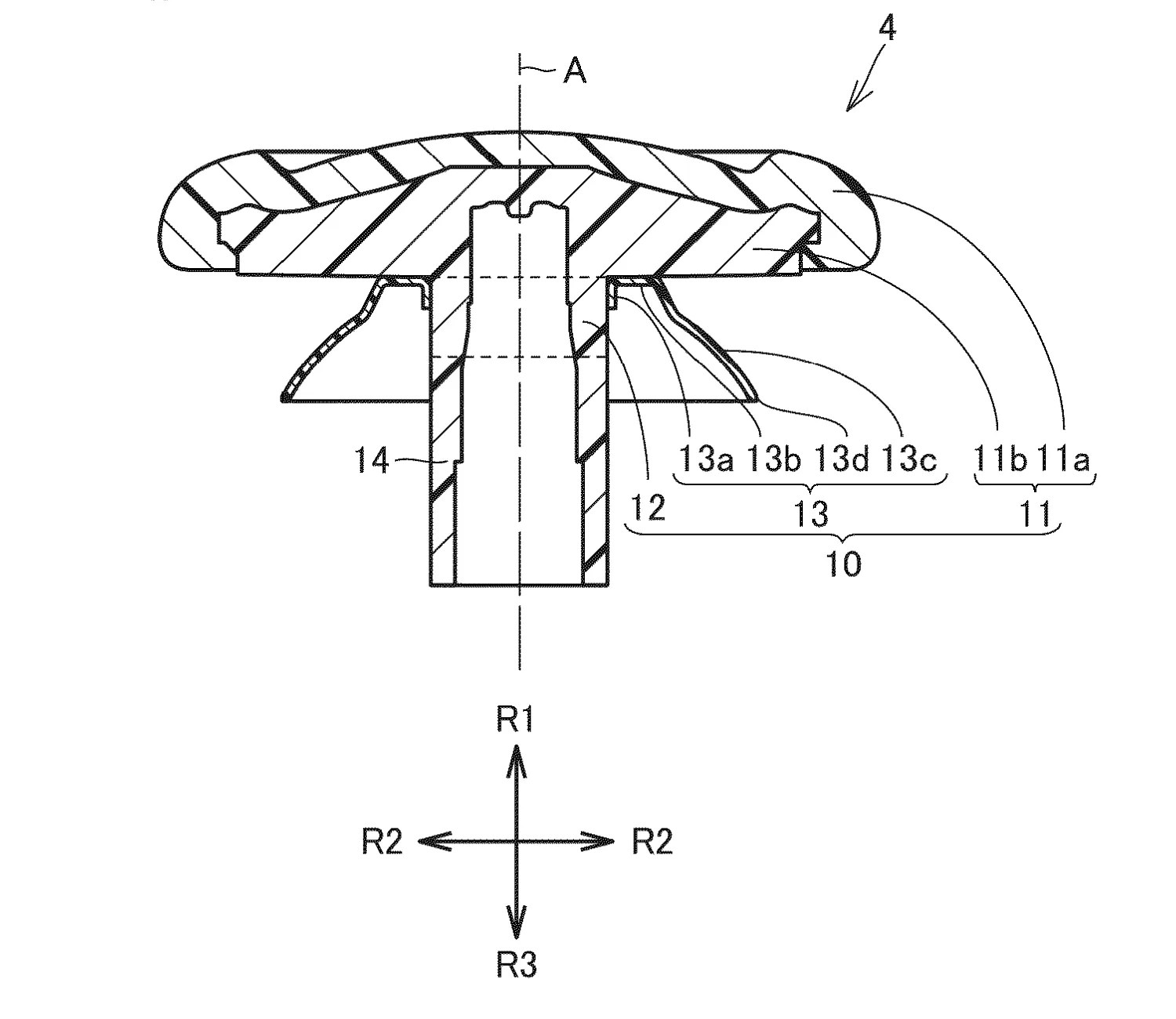

Drawing from patent EP4741986: Fig. 4 shows an exemplary illustrative non-limiting drawing of a schematic cross-sectional view showing a configuration of a stick.

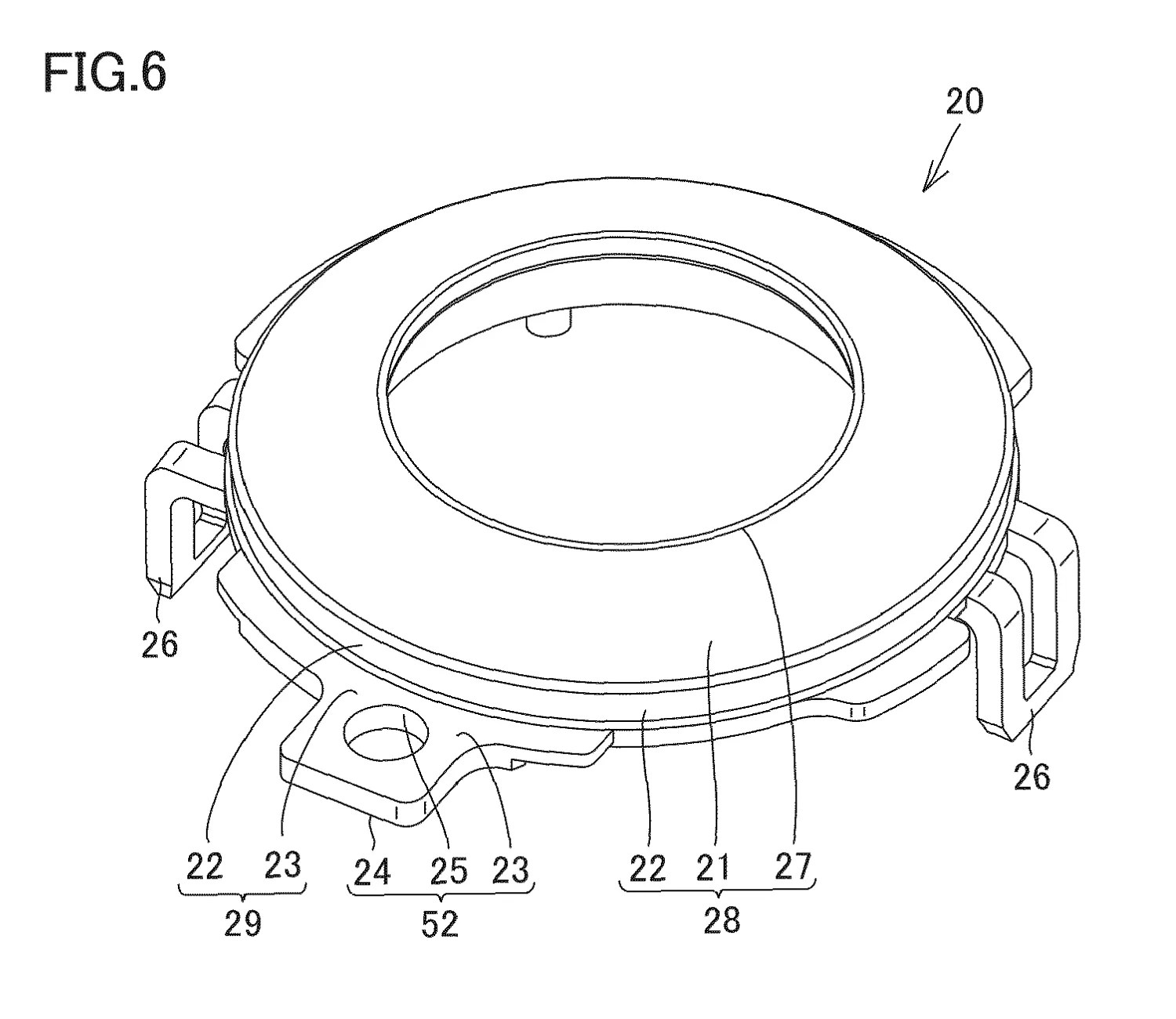

Drawing from patent EP 4741986: Fig. 6 shows an exemplary illustrative non-limiting drawing of a schematic perspective view showing a configuration of a cover.

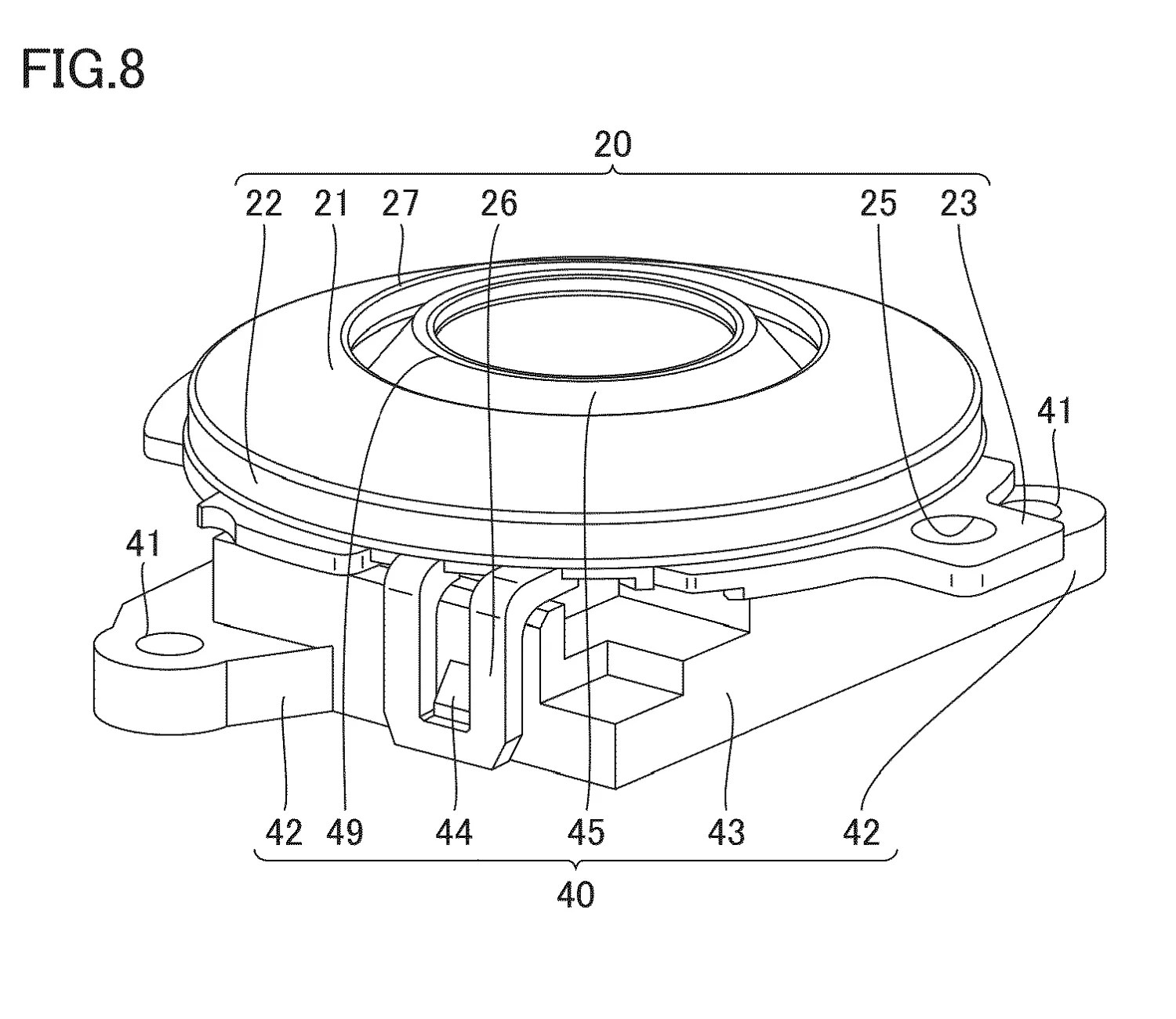

Drawing from patent EP 4741986: Fig. 8 shows an exemplary illustrative non-limiting drawing of a schematic perspective view showing a state in which the cover has been attached to a stick module housing.

Lastly, the stick module is fastened to the Joy-Con top shell via two screws (image below).

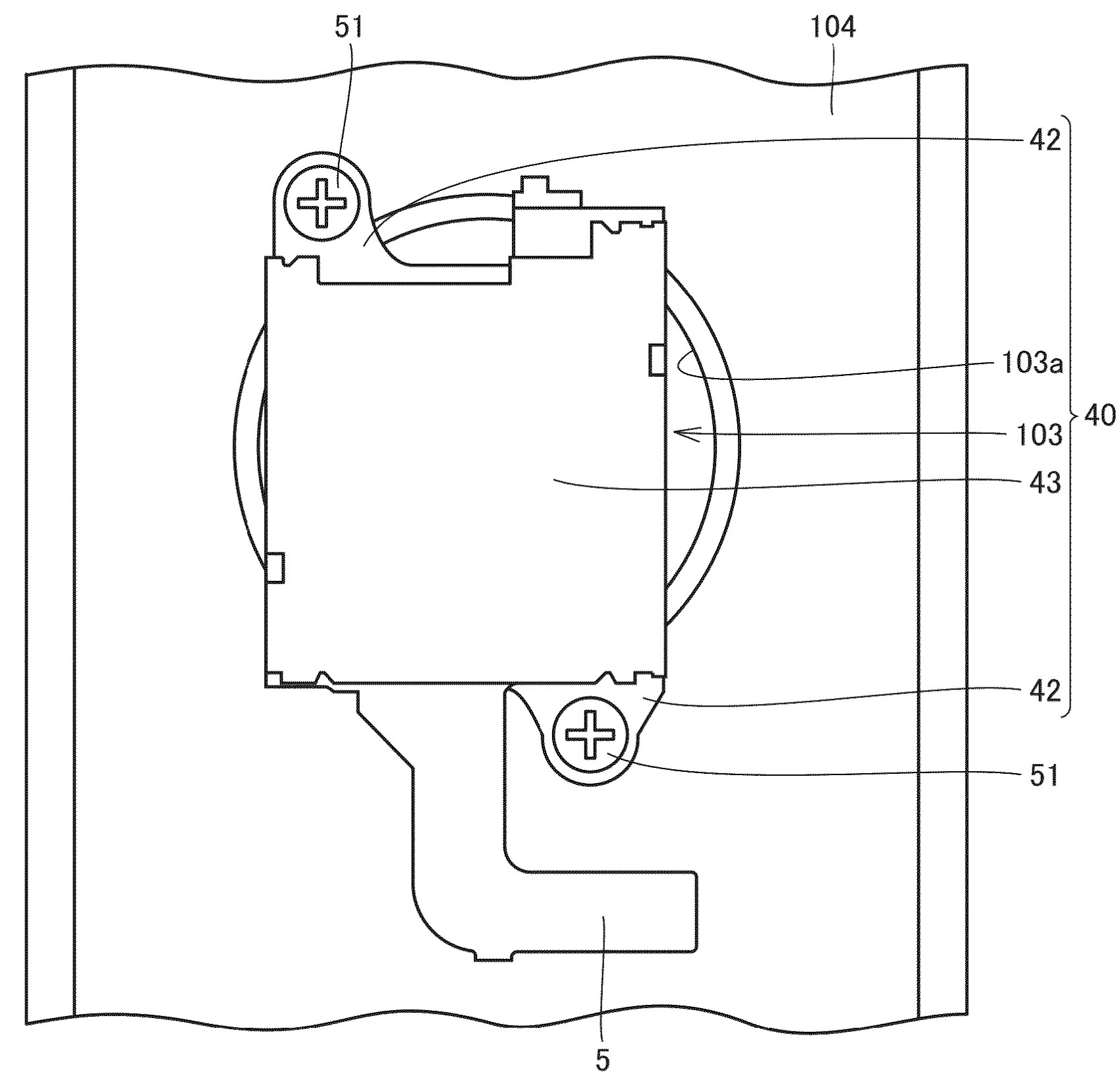

Drawing from patent EP 4741986: Fig. 9 shows an exemplary illustrative non-limiting drawing of a schematic rear view showing a state in which the stick module housing has been attached to the front wall of the controller housing.
