Knowledge-based discourse

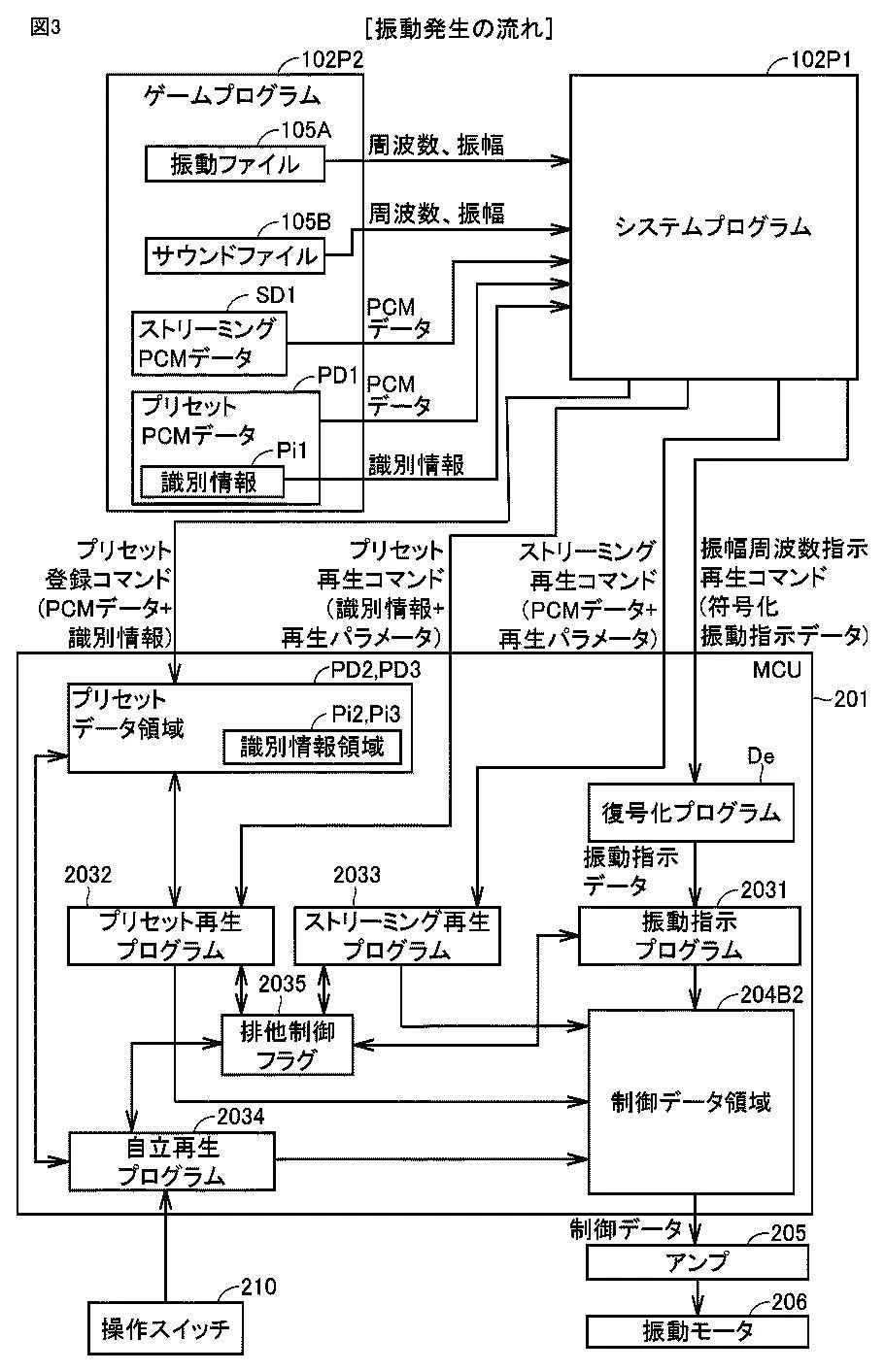

On the system level (image below), there are four types of HD Rumble 2 vibrations that a game can utilize:

  • Haptic vibration instruction
  • Audible vibration instruction
  • Streaming PCM waveform
  • Preset PCM waveform

An “instruction” basically is a command to the motor to vibrate at a given frequency and amplitude (image below); the instruction cycle is 5ms and the control cycle is 0.125ms. For reasons I don’t understand, the haptic and audio instructions are treated as two different categories (but then encoded together).

A long waveform, such as a tune, is streamed from the console to controller, sent every 20ms; this is a “streaming PCM”. On the other hand, a short waveform that is frequently used and needs instant response (e.g., force feedback for shooting) is pre-loaded in the controller’s memory as a “preset PCM”. In either case, the controller’s MCU converts the PCM into instructions, and passes them to the motor every 0.125ms.

According to the patent filing, the user has individual controls over:

  • Haptic rumble strength
  • Audible rumble volume
  • Overall output level (affecting both)

… but this seemingly has not been implemented in the actual System.

Source: Patent publication JP 2026015708

[Update on 2026-10-28] Addition information has been published. Read more here.

[Originally posted on 2026-03-24 Pacific Time]
